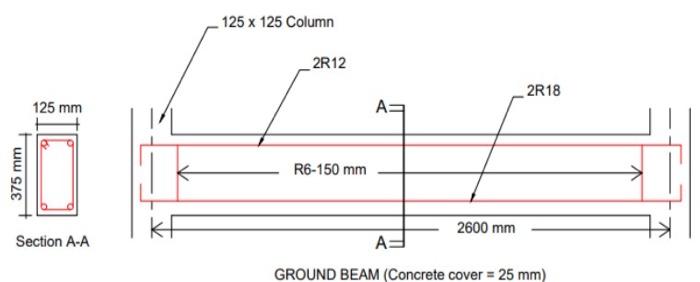

125 X 125 Column 2r12 2r18 125 Mm A 375 Mm R6 150 Mm Ka 2600 Mm Section A A A Ground Beam Concrete Cover 25 Mm 1 (19.73 KiB) Viewed 27 times
If the similar beam as shown in Figure Q2 is used as parameter beam to support threenumbers of ground floor suspended slab which are positioned side by side, prepare ataking off sheet for measuring the quantity of formwork for all ground beam used.
If the similar beam as shown in Figure Q2 is used as parameter beam to support three
numbers of ground floor suspended slab which are positioned side by side, prepare a
taking off sheet for measuring the quantity of formwork for all ground beam used.
125 x 125 Column 2R12 2R18 125 mm A: 375 mm R6-150 mm KA 2600 mm Section A-A A GROUND BEAM (Concrete cover = 25 mm)
