CHAPTER 3 7. Oil with specific gravity of 0.90 is flowing downward through the venturi meter shown in figure below. If t

[answerhappygod]

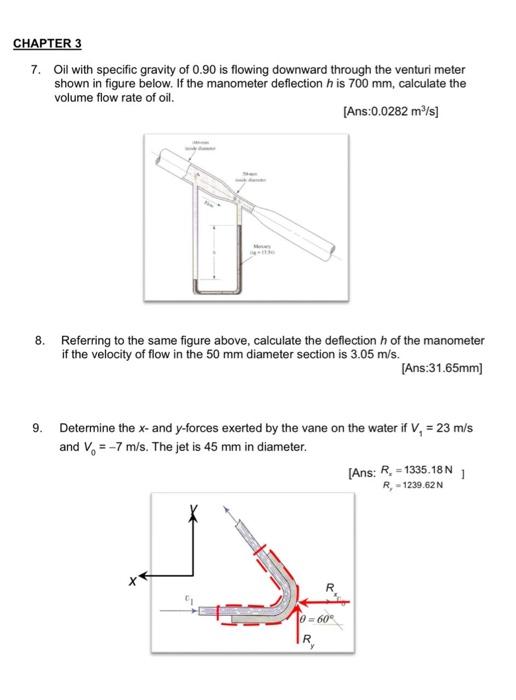

Chapter 3 7 Oil With Specific Gravity Of 0 90 Is Flowing Downward Through The Venturi Meter Shown In Figure Below If T 1 (30.74 KiB) Viewed 90 times

CHAPTER 3 7. Oil with specific gravity of 0.90 is flowing downward through the venturi meter shown in figure below. If the manometer deflection h is 700 mm, calculate the volume flow rate of oil. [Ans:0.0282 m /s] 8. Referring to the same figure above, calculate the deflection h of the manometer if the velocity of flow in the 50 mm diameter section is 3.05 m/s. [Ans:31.65mm) 9. Determine the x-and y-forces exerted by the vane on the water if V, = 23 m/s and V = -7 m/s. The jet is 45 mm in diameter. [Ans: R. - 1335.18N R. - 1239.62N 1 R 0 = 60° IR
