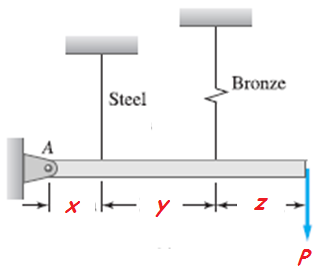

two rods, one made of steel and the other of bronze. Neglecting the
weight of the bar, compute the force (in N) in the steel rod
caused by the 46800-Nload, using the following data:
length of steel = 1.26 m, length of bronze =
2.47 m
Area of steel = 517 mm, Area of bronze = 251
mm
Modulus of elasticity of steel = 212 Gpa,
Modulus of elasticity of bronze = 87 Gpa
x = 0.64 m, y = 1.07 m, and z = 0.9 m.
Round off only the final answer to three decimal places.
- The Figure Shows A Rigid Bar That Is Supported By A Pin At A And Two Rods One Made Of Steel And The Other Of Bronze Ne 1 (12.67 KiB) Viewed 215 times
