Steel Beams structural Steel Design Home works 1- The beam shown in Figure must support two concentrated Tive loads of 2

[answerhappygod]

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 1 (28.96 KiB) Viewed 54 times

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 2 (28.96 KiB) Viewed 54 times

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 3 (28.96 KiB) Viewed 54 times

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 4 (28.96 KiB) Viewed 54 times

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 5 (28.96 KiB) Viewed 54 times

Steel Beams Structural Steel Design Home Works 1 The Beam Shown In Figure Must Support Two Concentrated Tive Loads Of 2 6 (31.63 KiB) Viewed 54 times

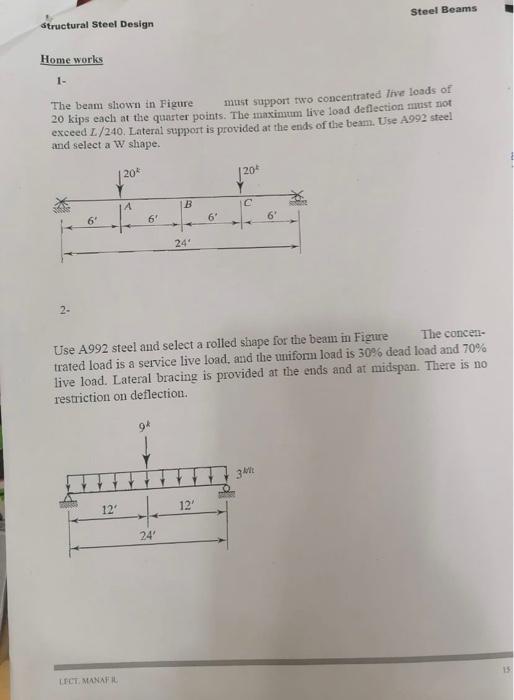

Steel Beams structural Steel Design Home works 1- The beam shown in Figure must support two concentrated Tive loads of 20 kips each at the quarter points. The maximum live load deflection must not exceed L/240. Lateral support is provided at the ends of the beam. Use A992 steel and select a W shape. [204 1204 B 6 6 6 + 6 24 2- Use A992 steel and select a rolled shape for the beam in Figure The concen trated load is a service live load, and the uniform load is 30% dead load and 70% live load. Lateral bracing is provided at the ends and at midspan. There is no restriction on deflection 94 361 12 12 24 15 LCT MANAT

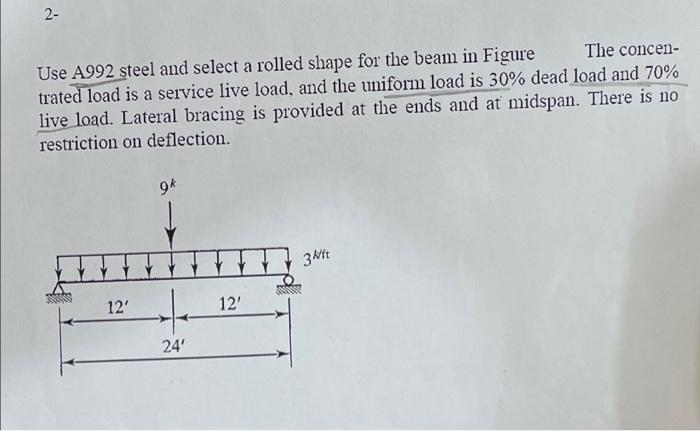

2- Use A992 steel and select a rolled shape for the beam in Figure The concen- trated load is a service live load, and the uniform load is 30% dead load and 70% live load. Lateral bracing is provided at the ends and at midspan. There is no restriction on deflection. 94 3 Wit 12 12 * 24'
