Find the approximate position of the shear centre for a beam with the channel cross-section of 100 mm (8) by 294 mm (D)

Post by answerhappygod »

Find The Approximate Position Of The Shear Centre For A Beam With The Channel Cross Section Of 100 Mm 8 By 294 Mm D 1
Find The Approximate Position Of The Shear Centre For A Beam With The Channel Cross Section Of 100 Mm 8 By 294 Mm D 1 (35.86 KiB) Viewed 50 times

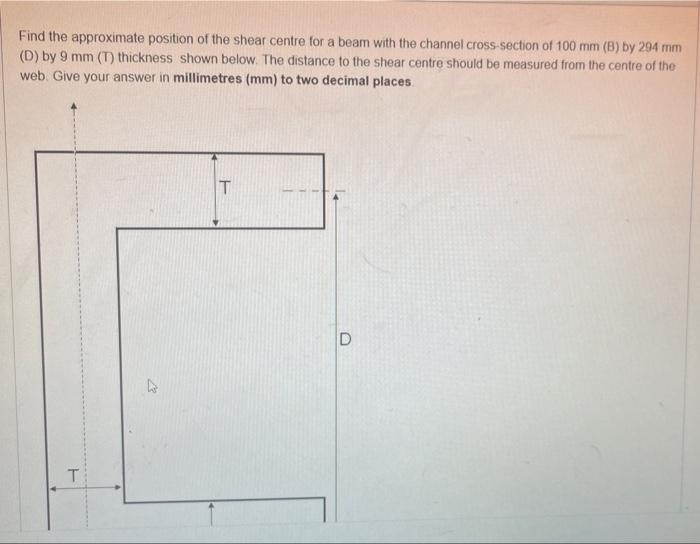

Find the approximate position of the shear centre for a beam with the channel cross-section of 100 mm (8) by 294 mm (D) by 9 mm (T) thickness shown below. The distance to the shear centre should be measured from the centre of the web Give your answer in millimetres (mm) to two decimal places IT D T
