Question 2 (a) Discuss in detail the steps that are involved in analysing a side-sway frame using the moment distributio

Post by answerhappygod »

Question 2 A Discuss In Detail The Steps That Are Involved In Analysing A Side Sway Frame Using The Moment Distributio 1
Question 2 A Discuss In Detail The Steps That Are Involved In Analysing A Side Sway Frame Using The Moment Distributio 1 (73.53 KiB) Viewed 45 times

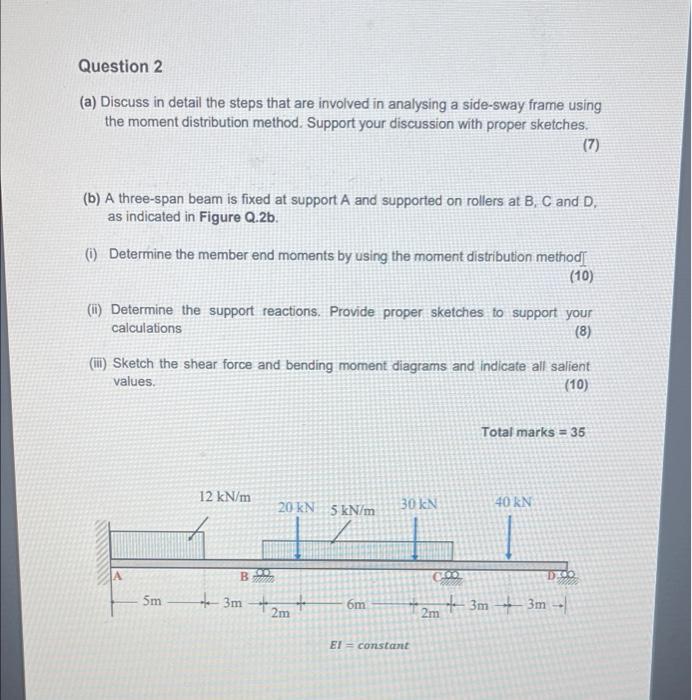

Question 2 (a) Discuss in detail the steps that are involved in analysing a side-sway frame using the moment distribution method. Support your discussion with proper sketches (7) (b) A three-span beam is fixed at support A and supported on rollers at B, C and D. as indicated in Figure Q.2b. (1) Determine the member end moments by using the moment distribution method: (10) (ii) Determine the support reactions. Provide proper sketches to support your calculations (8) (I) Sketch the shear force and bending moment diagrams and indicate all salient values (10) Total marks = 35 12 kN/m 20 KN 5 kN/m 30 KN 40 KN B 00 ces Doo 5m to 3m +2m + 6m fe 3m +3m- 2m ET = constant
