Question 1 A rigid-jointed frame ABCD with inclined member AC is fixed at supports A and at B. as shown in Figure Q.1. A

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 1 A rigid-jointed frame ABCD with inclined member AC is fixed at supports A and at B. as shown in Figure Q.1. A

Post by answerhappygod »

Question 1 A Rigid Jointed Frame Abcd With Inclined Member Ac Is Fixed At Supports A And At B As Shown In Figure Q 1 A 1
Question 1 A Rigid Jointed Frame Abcd With Inclined Member Ac Is Fixed At Supports A And At B As Shown In Figure Q 1 A 1 (58.14 KiB) Viewed 65 times

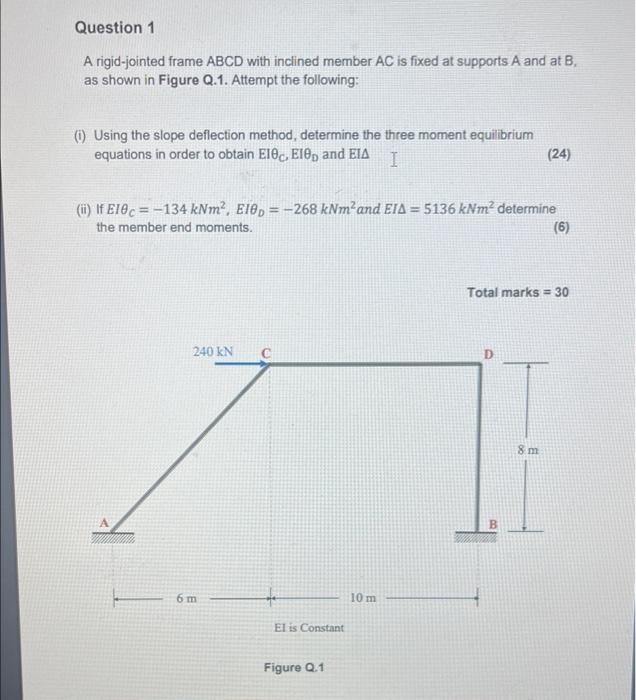

Question 1 A rigid-jointed frame ABCD with inclined member AC is fixed at supports A and at B. as shown in Figure Q.1. Attempt the following: 0Using the slope deflection method, determine the three moment equilibrium equations in order to obtain Elec.Ele, and EIA 1 (24) (i) If Elec = -134 kNm, E10) = -268 kNm and ETA = 5136 kNm determine the member end moments. (6) Total marks = 30 240 KN с D 8m k 6 m + 10 m El is Constant Figure Q.1
