Question 3 A point on a thin plate is subjected to the two stress components as shown in Figure Q3 (a) and (b). Determin

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 3 A point on a thin plate is subjected to the two stress components as shown in Figure Q3 (a) and (b). Determin

Post by answerhappygod »

Question 3 A Point On A Thin Plate Is Subjected To The Two Stress Components As Shown In Figure Q3 A And B Determin 1
Question 3 A Point On A Thin Plate Is Subjected To The Two Stress Components As Shown In Figure Q3 A And B Determin 1 (93.17 KiB) Viewed 58 times

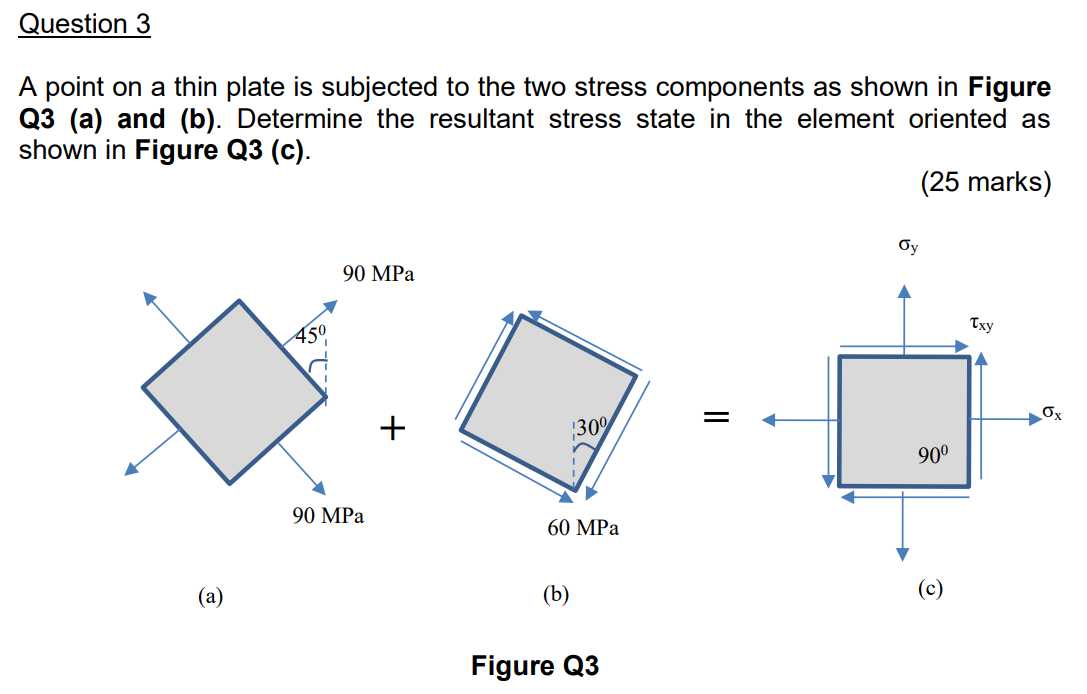

Question 3 A point on a thin plate is subjected to the two stress components as shown in Figure Q3 (a) and (b). Determine the resultant stress state in the element oriented as shown in Figure Q3 (c). (25 marks) Oy 90 MPa Txy 450 = Ox + 30% 90° 90 MPa 60 MPa (a ) (b) (c) Figure Q3
