Compute the deflection at midspan and the slope at A in the figure shown. Elis constant. Express the slope in degrees an

Post by answerhappygod »

Compute The Deflection At Midspan And The Slope At A In The Figure Shown Elis Constant Express The Slope In Degrees An 1
Compute The Deflection At Midspan And The Slope At A In The Figure Shown Elis Constant Express The Slope In Degrees An 1 (100.43 KiB) Viewed 62 times

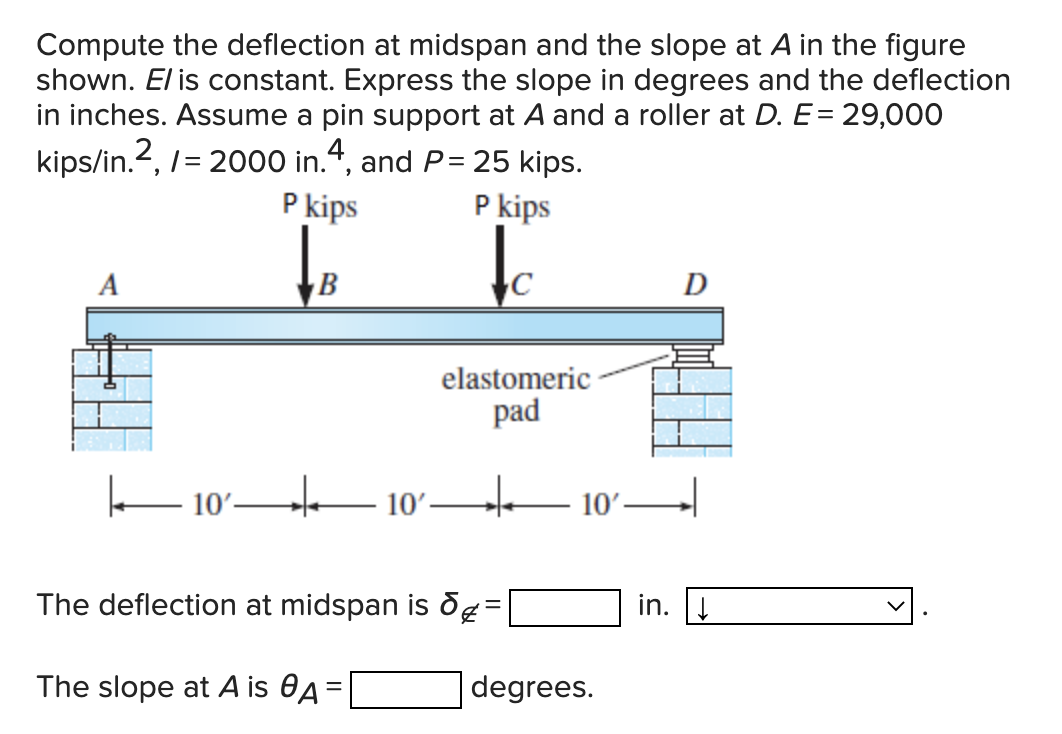

Compute the deflection at midspan and the slope at A in the figure shown. Elis constant. Express the slope in degrees and the deflection in inches. Assume a pin support at A and a roller at D. E= 29,000 kips/in.2, 1= 2000 in.4, and P= 25 kips. P kips P kips to A B D elastomeric pad 10—10— 10' The deflection at midspan is der in. The slope at A is DA= degrees.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
