Question 2 30 A portion of a municipal water distribution networks is shown below when all pipes are made of ductile iro

Post by answerhappygod »

Question 2 30 A Portion Of A Municipal Water Distribution Networks Is Shown Below When All Pipes Are Made Of Ductile Iro 1
Question 2 30 A Portion Of A Municipal Water Distribution Networks Is Shown Below When All Pipes Are Made Of Ductile Iro 1 (31.64 KiB) Viewed 52 times

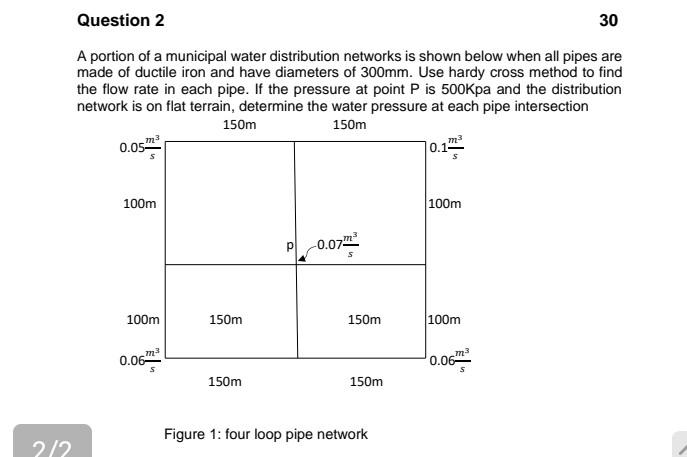

Question 2 30 A portion of a municipal water distribution networks is shown below when all pipes are made of ductile iron and have diameters of 300mm. Use hardy cross method to find the flow rate in each pipe. If the pressure at point P is 500Kpa and the distribution network is on flat terrain, determine the water pressure at each pipe intersection 150m 150m 0.05 0.14 m3 m3 100m 100m -0.07" 100m 150m 150m 100m 0.09m 20.06m 150m 150m Figure 1: four loop pipe network 212
