Q1. The cross-section for a beam is illustrated in Figure Q1, i) What is the location for the Centroid; [8 marks) ii) Wh

[answerhappygod]

Q1 The Cross Section For A Beam Is Illustrated In Figure Q1 I What Is The Location For The Centroid 8 Marks Ii Wh 1 (25.34 KiB) Viewed 58 times

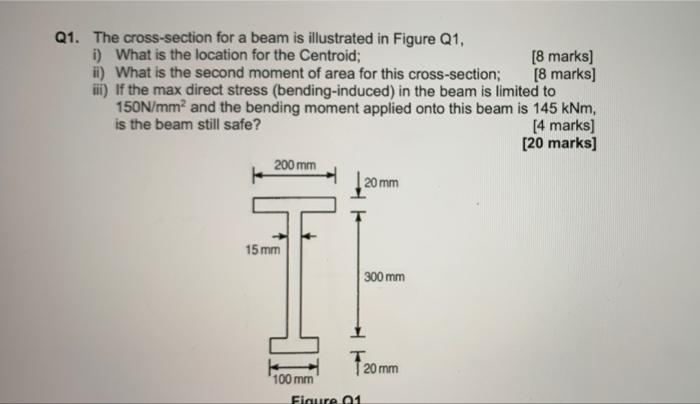

Q1. The cross-section for a beam is illustrated in Figure Q1, i) What is the location for the Centroid; [8 marks) ii) What is the second moment of area for this cross-section; [8 marks] ii) If the max direct stress (bending-induced) in the beam is limited to 150N/mm² and the bending moment applied onto this beam is 145 kNm, is the beam still safe? [4 marks) [20 marks] 200 mm 20 mm 15 mm 300 mm 20 mm 100 mm Fiqure 01
