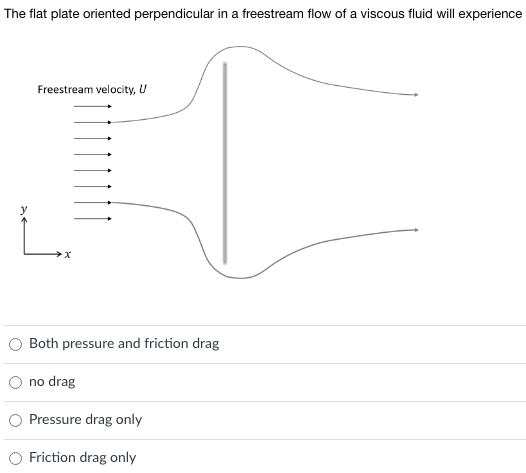

The flat plate oriented perpendicular in a freestream flow of a viscous fluid will experience Freestream velocity, U L x Both pressure and friction drag no drag Pressure drag only Friction drag only

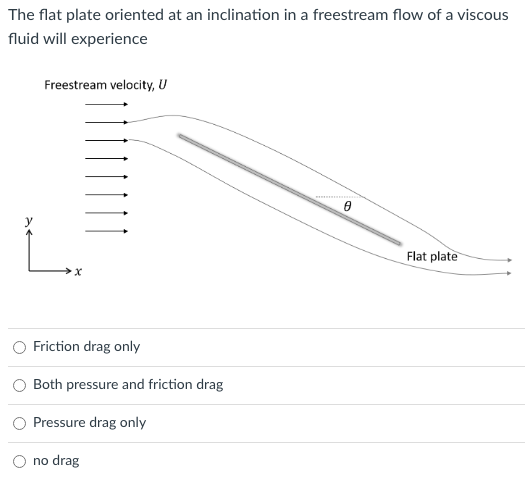

The flat plate oriented at an inclination in a freestream flow of a viscous fluid will experience Freestream velocity, U 0 Flat plate X Friction drag only Both pressure and friction drag Pressure drag only no drag
