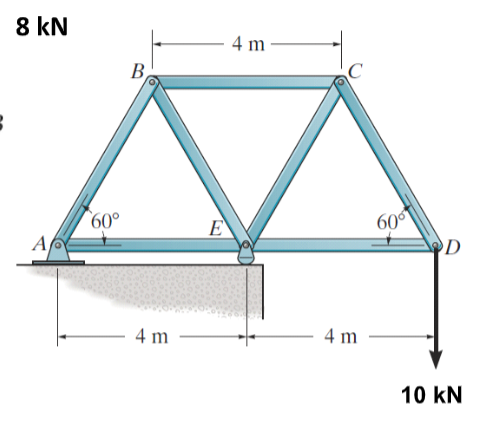

III) Using (MoJ) Method of Joints, determine the Force
of each member of the truss shown. Also state whether the members
are in Tension or Compression.
Iii Using Moj Method Of Joints Determine The Force Of Each Member Of The Truss Shown Also State Whether The Members 1 (86.49 KiB) Viewed 54 times

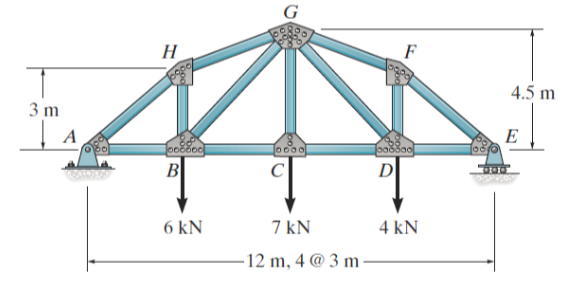

IIII) Determine the forces in the truss members BG, HG, and
BC using the Method of Sections.
Determine whether these members are in Tension or Compression. It's
worth noting that A is pinned and E is a roller.
Iii Using Moj Method Of Joints Determine The Force Of Each Member Of The Truss Shown Also State Whether The Members 2 (61.11 KiB) Viewed 54 times
8 kN - 4 m В, C 60° 600 A D 4 m 4 m 10 KN
G Н. F 4.5 m 3 m E 10000 B с ၁၀8&oe D 6 kN 7 KN 4 KN 12 m, 4 @ 3 m
