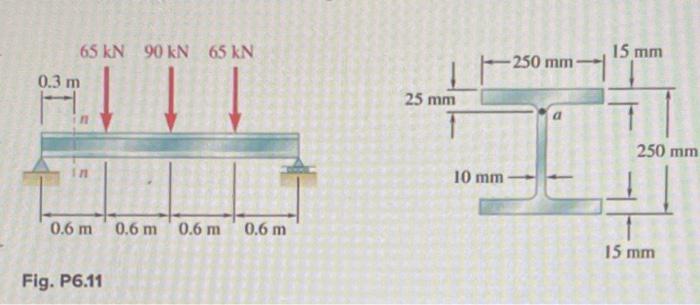

6.9 through 6.12 For the beam and loading shown, consider section n-n and determine (a) the largest shearing stress in that section, (b) the shearing stress at point a.
65 kN 90 KN 65 KN 15 mm - 250 mm 0.3 m 1 25 mm 1 250 mm 10 mm 0.6 m 0.6 m 0.6 m 0.6 m 15 mm Fig. P6.11
