Question 5 A simple pin-jointed framework ABC is supported and loaded as shown in Figure 2. The axial force in bar AC is

Business, Finance, Economics, Accounting, Operations Management, Computer Science, Electrical Engineering, Mechanical Engineering, Civil Engineering, Chemical Engineering, Algebra, Precalculus, Statistics and Probabilty, Advanced Math, Physics, Chemistry, Biology, Nursing, Psychology, Certifications, Tests, Prep, and more.
Post Reply
answerhappygod
Site Admin
Posts: 899604
Joined: Mon Aug 02, 2021 8:13 am

Question 5 A simple pin-jointed framework ABC is supported and loaded as shown in Figure 2. The axial force in bar AC is

Post by answerhappygod »

Question 5 A Simple Pin Jointed Framework Abc Is Supported And Loaded As Shown In Figure 2 The Axial Force In Bar Ac Is 1
Question 5 A Simple Pin Jointed Framework Abc Is Supported And Loaded As Shown In Figure 2 The Axial Force In Bar Ac Is 1 (23.6 KiB) Viewed 49 times

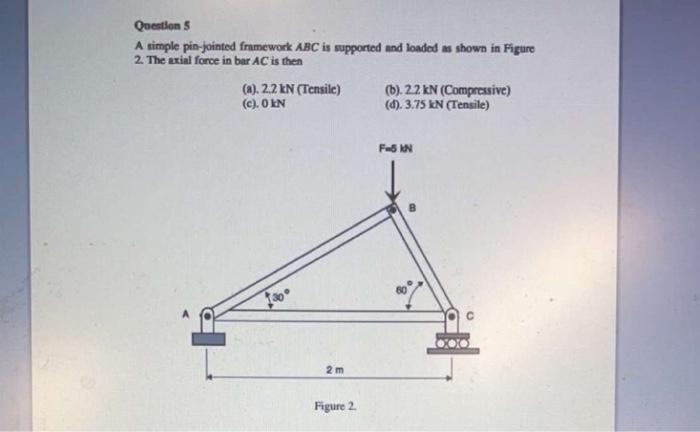

Question 5 A simple pin-jointed framework ABC is supported and loaded as shown in Figure 2. The axial force in bar AC is then (a). 2.2 kN (Tensile) (b). 22 kN (Compressive) (c). OLN (d). 3.75 kN (Tensile) FSN 2 m Figure 2.
