Problem 5 The structure shown in Fig. below consists of three cylindrical support posts to which an elliptical flat-plat

Post by answerhappygod »

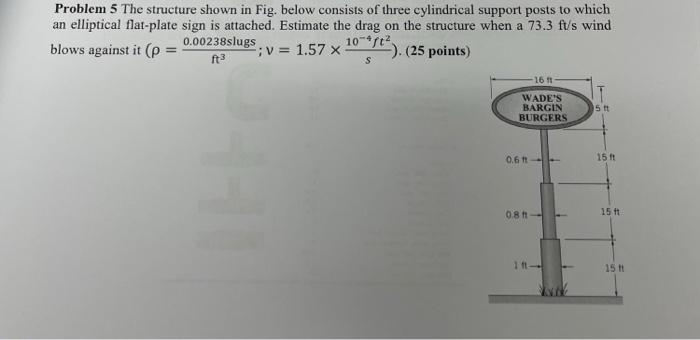

Problem 5 The Structure Shown In Fig Below Consists Of Three Cylindrical Support Posts To Which An Elliptical Flat Plat 1
Problem 5 The Structure Shown In Fig Below Consists Of Three Cylindrical Support Posts To Which An Elliptical Flat Plat 1 (19.88 KiB) Viewed 57 times
Problem 5 The structure shown in Fig. below consists of three cylindrical support posts to which an elliptical flat-plate sign is attached. Estimate the drag on the structure when a 73.3 ft/s wind blows against it (p 0.00238slugs 10-12 ; v = 1.57 x .(25 points) s 16 T WADE'S BARGIN BURGERS 5 0.611 1511 081 15 11 15 11
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
