2. 4) The bent rod is supported at points A, B and C by smooth journal bearings, and is subjected to force F. If dimensi

[answerhappygod]

2 4 The Bent Rod Is Supported At Points A B And C By Smooth Journal Bearings And Is Subjected To Force F If Dimensi 1 (88.46 KiB) Viewed 49 times

I calculated By=-9.741 and Bz=4.482 and the magnitude was
calculated to be 10.722 but it says I was wrong please help with
this question, all information required to solve is in the picture
there is no additional information

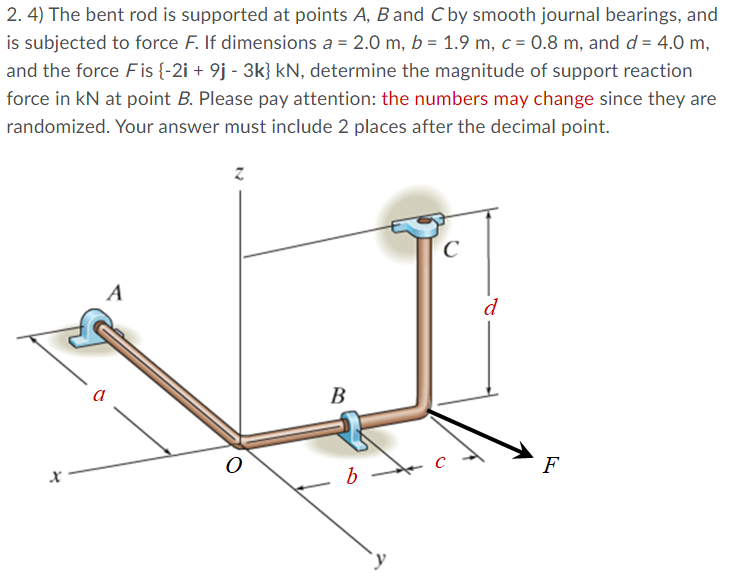

2. 4) The bent rod is supported at points A, B and C by smooth journal bearings, and is subjected to force F. If dimensions a = 2.0 m, b = 1.9 m, c = 0.8 m, and d = 4.0 m, and the force Fis {-21 + 9j - 3k} kN, determine the magnitude of support reaction force in kN at point B. Please pay attention: the numbers may change since they are randomized. Your answer must include 2 places after the decimal point. С d d B 0 с F x b
