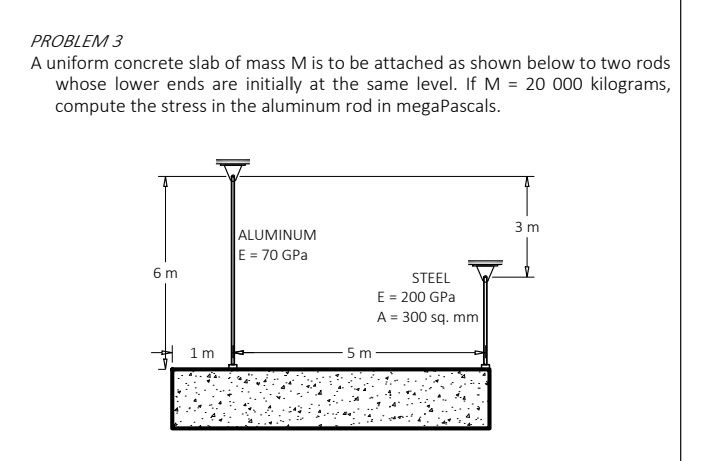

Problem 3 A Uniform Concrete Slab Of Mass M Is To Be Attached As Shown Below To Two Rods Whose Lower Ends Are Initially 1 (39.7 KiB) Viewed 57 times
A uniform concrete slab of mass M is to be attached as shown below to two rods
whose lower ends are initially at the same level. If M = 20 000 kilograms,
compute the stress in the aluminum rod in megaPascals.
PROBLEM 3 A uniform concrete slab of mass M is to be attached as shown below to two rods whose lower ends are initially at the same level. If M = 20 000 kilograms, compute the stress in the aluminum rod in megaPascals. 3 m ALUMINUM E = 70 GPa 6 m STEEL E = 200 GPS A = 300 sq. mm 1 m 5 m
