Prob. 4 (50 points): The state of pline stress at a point is shown on the element in the figure Determine the maximum in

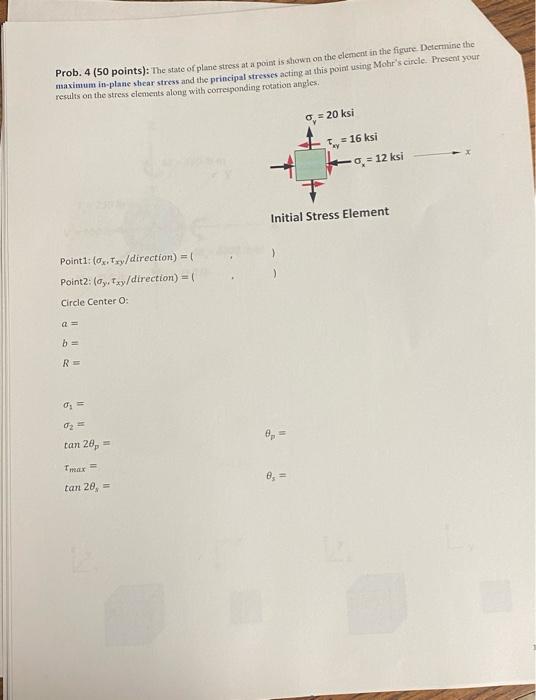

Prob. 4 (50 points): The state of pline stress at a point is shown on the element in the figure Determine the maximum in-plane shear stress and the principal stresses acting at this point using Mehr's circle. Present your results on the stress clements along with corresponding rotation angles 0,- 20 ksi 5- 16 ksi 0,= 12 ksi Initial Stress Element Point1: fox, Try/direction=1 Point2: (ay. Txy/direction) =( Circle Center : Q b= RE o; tan 28, = e = tan 20,=
