Prob. 3 (100 points) 3(a) (20 points) The beveled gear is subjected to the loads shown. The staff has a diameter of 1" a

[answerhappygod]

Prob 3 100 Points 3 A 20 Points The Beveled Gear Is Subjected To The Loads Shown The Staff Has A Diameter Of 1 A 1 (31.08 KiB) Viewed 47 times

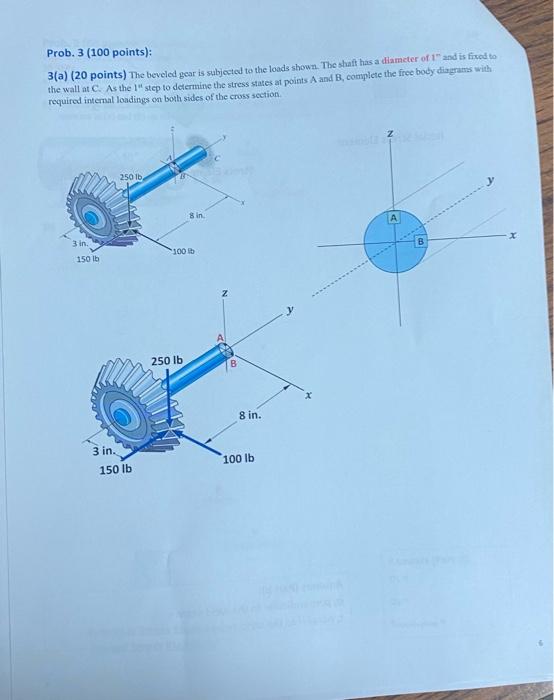

Prob. 3 (100 points) 3(a) (20 points) The beveled gear is subjected to the loads shown. The staff has a diameter of 1" and is fixed to the wall at C. As the step to determine the stress states at points A and B, complete the free body diagrams with required internal loadings on both sides of the cross section 250 lb sin 3 in 150 lb 300 lb Z 250 lb 8 in. 3 in. 150 lb 100 lb
