Prob. 2 (60 points): The cylindrical pressure vessel has an inner radius of 1.5 m and a wall thickness of 10 mm. It is m

[answerhappygod]

Prob 2 60 Points The Cylindrical Pressure Vessel Has An Inner Radius Of 1 5 M And A Wall Thickness Of 10 Mm It Is M 1 (30.23 KiB) Viewed 33 times

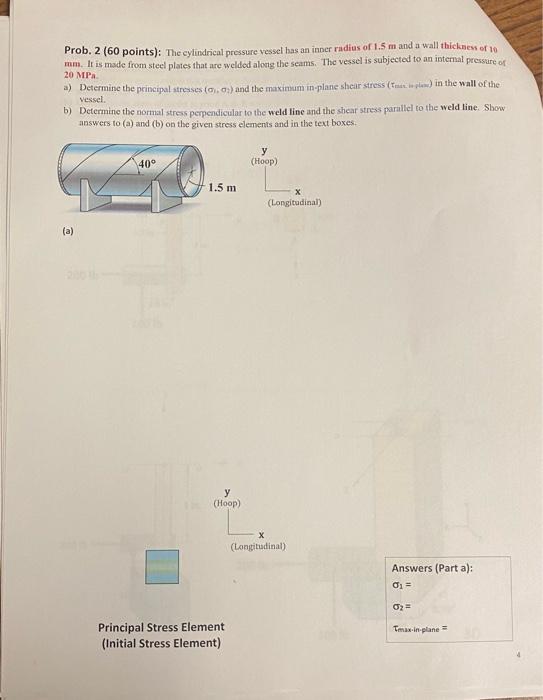

Prob. 2 (60 points): The cylindrical pressure vessel has an inner radius of 1.5 m and a wall thickness of 10 mm. It is made from steel plates that are welded along the scams. The vessel is subjected to an internal pressure of 20 MPA a) Determine the principal stresses (...) and the maximum in-plane shear stress (teplem) in the wall of the vessel b) Determine the normal stress perpendicular to the weld line and the shear stress parallel to the weld line. Show answers to (a) and (b) on the given stress elements and in the text boxes. y (Hoop) 40° 1.5 m (Longitudinal) (a) у (Hoop) X (Longitudinal Answers (Parta): Oj = 2= Tmaxi-plane Principal Stress Element (Initial Stress Element)
