Problem 2 (20 points) The displacement field within the structure shown in Fig. I is given as v(x,y) = xy 1. The structu

Post by answerhappygod »

Problem 2 20 Points The Displacement Field Within The Structure Shown In Fig I Is Given As V X Y Xy 1 The Structu 1
Problem 2 20 Points The Displacement Field Within The Structure Shown In Fig I Is Given As V X Y Xy 1 The Structu 1 (19.62 KiB) Viewed 45 times

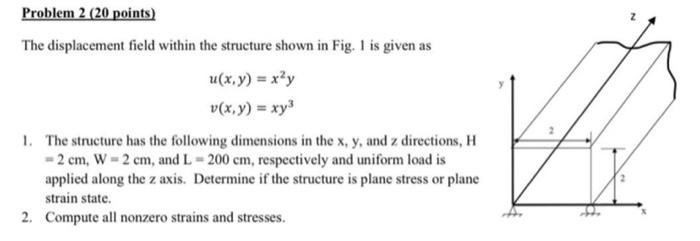

Problem 2 (20 points) The displacement field within the structure shown in Fig. I is given as v(x,y) = xy 1. The structure has the following dimensions in the x, y, and z directions, H -2 cm, W-2 cmand L-200 cm, respectively and uniform load is applied along the z axis. Determine if the structure is plane stress or plane strain state. 2. Compute all nonzero strains and stresses.
