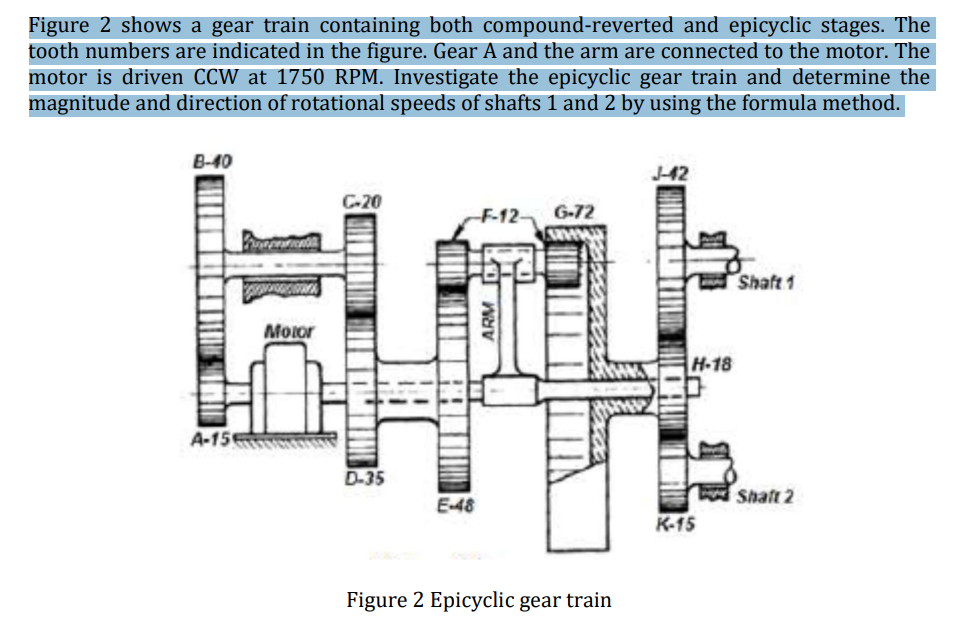

Figure 2 shows a gear train containing both compound-reverted and epicyclic stages. The tooth numbers are indicated in the figure. Gear A and the arm are connected to the motor. The motor is driven CCW at 1750 RPM. Investigate the epicyclic gear train and determine the magnitude and direction of rotational speeds of shafts 1 and 2 by using the formula method. B-40 412 C-20 F-12 G-72 orica IZA Shaft 1 Motor H-18 A-15 D-35 E48 w Shaft 2 K-15 Figure 2 Epicyclic gear train
