Problem 1: The beam shown below is loaded by two total distributed loads on both sides (30 kN on top side and 30 KN on b

Post by answerhappygod »

Problem 1 The Beam Shown Below Is Loaded By Two Total Distributed Loads On Both Sides 30 Kn On Top Side And 30 Kn On B 1
Problem 1 The Beam Shown Below Is Loaded By Two Total Distributed Loads On Both Sides 30 Kn On Top Side And 30 Kn On B 1 (21.67 KiB) Viewed 51 times

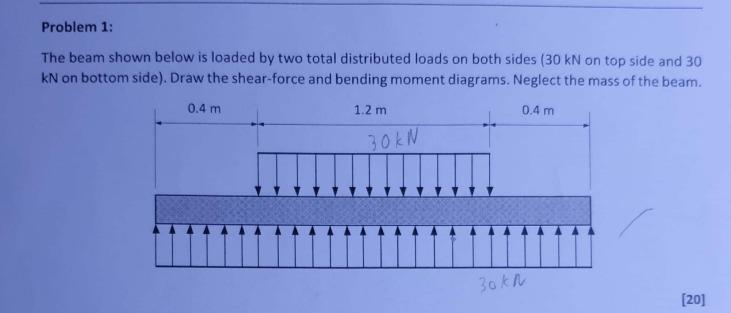

Problem 1: The beam shown below is loaded by two total distributed loads on both sides (30 kN on top side and 30 KN on bottom side). Draw the shear-force and bending moment diagrams. Neglect the mass of the beam. 0.4 m 1.2 m 0.4 m 30kN 30kn [20]
