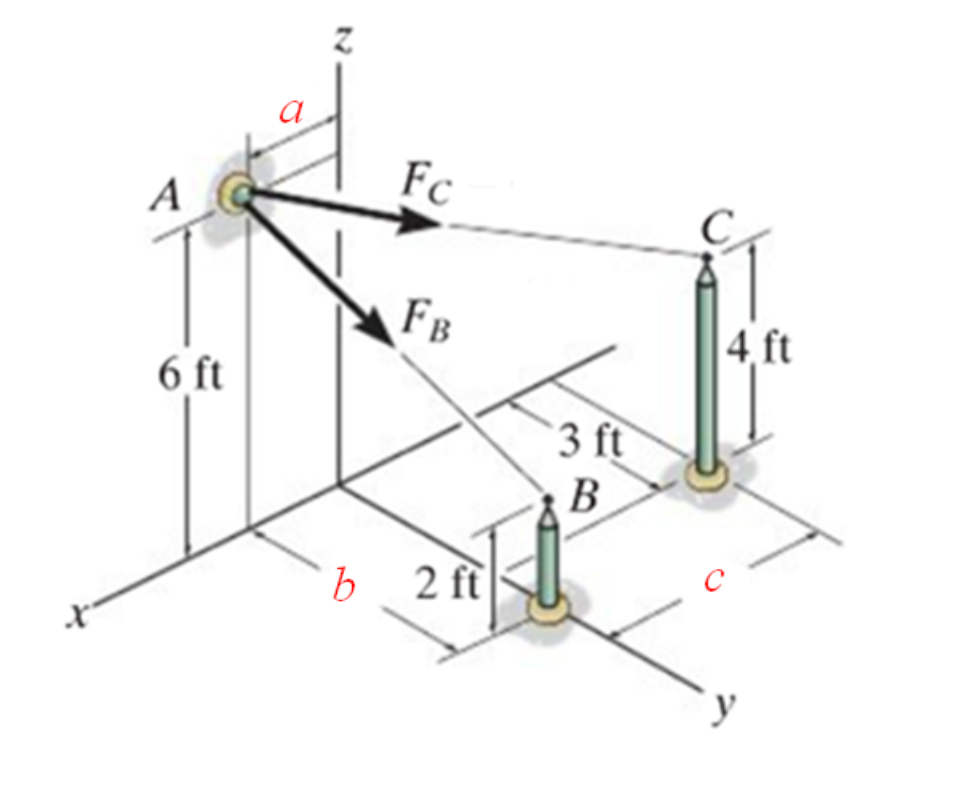

As shown in the image below, if the distances are a =
1.8 ft, b = 4.2 ft, and c = 4.4 ft, and the
magnitudes of the forces FB = 460 lb, and
FC = 560 lb, determine magnitude of the
projection of force FB along
AC, in lb. Please pay attention: the numbers may
change since they are randomized. Your answer must include 1 place
after the decimal point.
As Shown In The Image Below If The Distances Are A 1 8 Ft B 4 2 Ft And C 4 4 Ft And The Magnitudes Of The Forc 1 (245.57 KiB) Viewed 38 times
a A FC FB 4. ft 6 ft 3 ft B b 2 ft у
