For the circuit shown in Figure B5, the expressions for the two voltage sources are Vsi (t) = 12 sin(ot) V and Vs2 (t) =

Post by answerhappygod »

For The Circuit Shown In Figure B5 The Expressions For The Two Voltage Sources Are Vsi T 12 Sin Ot V And Vs2 T 1
For The Circuit Shown In Figure B5 The Expressions For The Two Voltage Sources Are Vsi T 12 Sin Ot V And Vs2 T 1 (115.52 KiB) Viewed 44 times

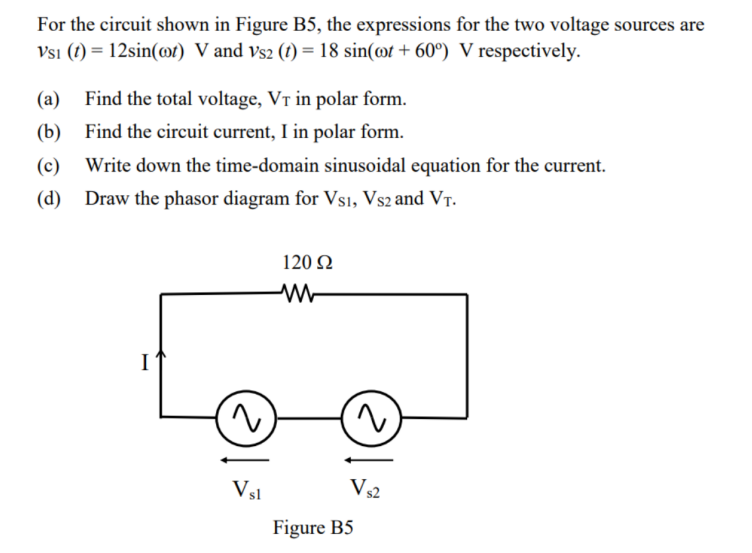

For the circuit shown in Figure B5, the expressions for the two voltage sources are Vsi (t) = 12 sin(ot) V and Vs2 (t) = 18 sin(ot + 60°) V respectively. (a) Find the total voltage, Vī in polar form. (b) Find the circuit current, I in polar form. (c) Write down the time-domain sinusoidal equation for the current. (d) Draw the phasor diagram for Vsi, Vs2 and Vī. 120 22 I (N N Vs1 V2 Figure B5
