Answer as soon as possible pls. Thx
Answer as soon as possible pls. Thx

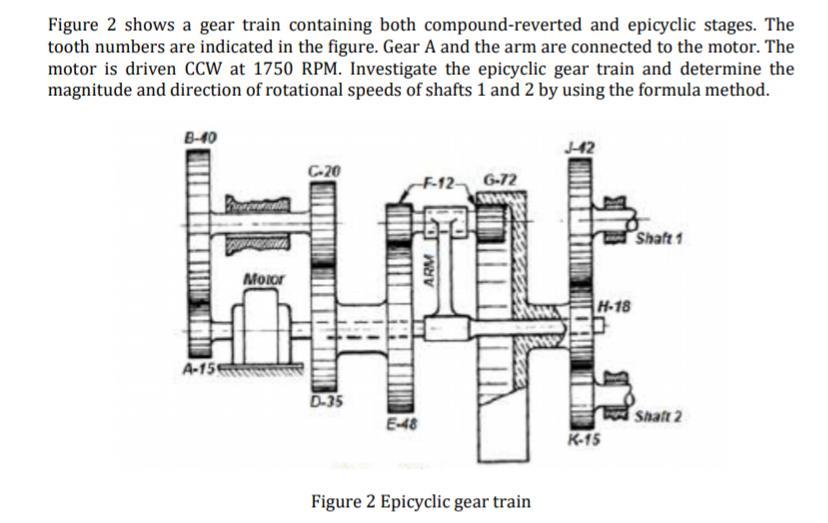

Figure 2 shows a gear train containing both compound-reverted and epicyclic stages. The tooth numbers are indicated in the figure. Gear A and the arm are connected to the motor. The motor is driven CCW at 1750 RPM. Investigate the epicyclic gear train and determine the magnitude and direction of rotational speeds of shafts 1 and 2 by using the formula method. 8-10 J-42 G-20 +-12 6-72 MW Shaft 1 Motor ARM SU H-18 A-15€ D-35 E-48 Shaft 2 K-15 Figure 2 Epicyclic gear train
Figure 2 shows a gear train containing both compound-reverted and epicyclic stages. The tooth numbers are indicated in the figure. Gear A and the arm are connected to the motor. The motor is driven CCW at 1750 RPM. Investigate the epicyclic gear train and determine the magnitude and direction of rotational speeds of shafts 1 and 2 by using the formula method. 8-10 J-42 G-20 +-12 6-72 MW Shaft 1 Motor ARM SU H-18 A-15€ D-35 E-48 Shaft 2 K-15 Figure 2 Epicyclic gear train
