The truss below approximates a radio antenna tower. The blue vertical loads represent the weight of the structure and th

Post by answerhappygod »

The Truss Below Approximates A Radio Antenna Tower The Blue Vertical Loads Represent The Weight Of The Structure And Th 1
The Truss Below Approximates A Radio Antenna Tower The Blue Vertical Loads Represent The Weight Of The Structure And Th 1 (42.11 KiB) Viewed 49 times
Calculate the angle of each of members 3, 4, and 5,
based on the x and y components of each member given.
For members 3 and 4 is angle is with respect to the
NEGATIVE x-axis. For member 5 the angle is from the positive
x-axis.

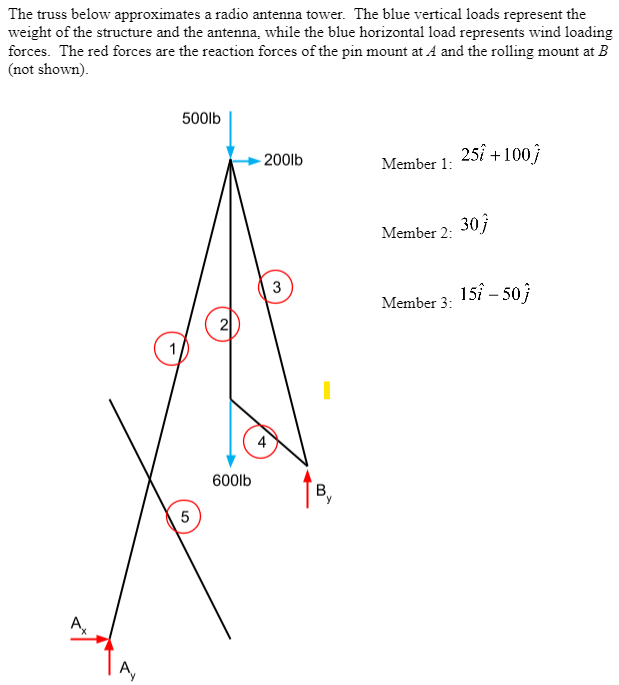

The truss below approximates a radio antenna tower. The blue vertical loads represent the weight of the structure and the antenna, while the blue horizontal load represents wind loading forces. The red forces are the reaction forces of the pin mount at A and the rolling mount at B (not shown) 500lb 2001b 25 +100 Member 1: Member 2: 30 3 Member 3: 151 - 50j 6001b 1B 5 A A
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
