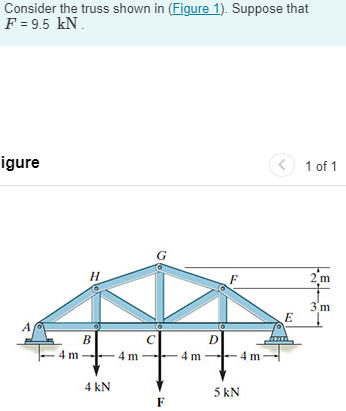

Consider the truss shown in (Figure 1). Suppose that F = 9.5 kN igure < 1 of 1 G H 2 2 m 3 T31 3 m E A B с - 4m D 4 m 4

[answerhappygod]

1 (49.3 KiB) Viewed 50 times

part B plz
Consider the truss shown in (Figure 1). Suppose that F = 9.5 kN igure < 1 of 1 G H 2 2 m 3 T31 3 m E A B с - 4m D 4 m 4 4 m m 4 KN S KN F
Part A Deturmine the magnitude of the vertical component of the reaction force at pin A. Ay = 9.00 KN Submit Previous Answers Correct Part B Deturmine the magnitude of the vertical component of the reaction force at the roller support E. ΟΙ ΑΣΦ/f vec ? Ey KN
