Question 2 (10 marks) Design a double-dwell cam to move a follower using polynomial function for a follower that rises,

[answerhappygod]

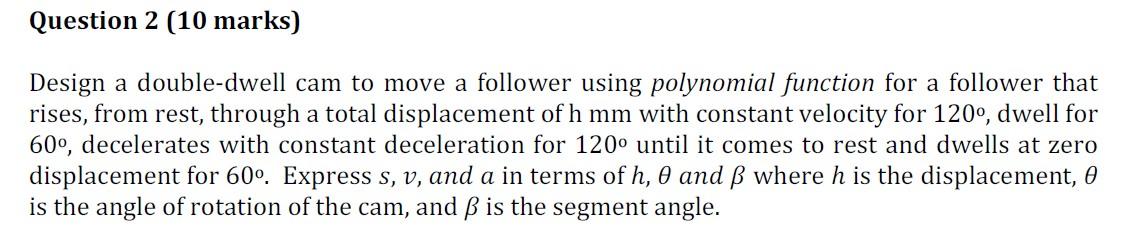

Question 2 10 Marks Design A Double Dwell Cam To Move A Follower Using Polynomial Function For A Follower That Rises 1 (53.34 KiB) Viewed 60 times

Question 2 (10 marks) Design a double-dwell cam to move a follower using polynomial function for a follower that rises, from rest, through a total displacement of h mm with constant velocity for 120°, dwell for 60°, decelerates with constant deceleration for 120° until it comes to rest and dwells at zero displacement for 60º. Express s, v, and a in terms of h, 0 and ß where h is the displacement, o is the angle of rotation of the cam, and ß is the segment angle.
