Problem No. 1: (50 points) Grade: Y Nor Bonus (Please circle) A 30 mm diameter, steel shaft transmits 300 N*m of torque

Post by answerhappygod »

Problem No 1 50 Points Grade Y Nor Bonus Please Circle A 30 Mm Diameter Steel Shaft Transmits 300 N M Of Torque 1
Problem No 1 50 Points Grade Y Nor Bonus Please Circle A 30 Mm Diameter Steel Shaft Transmits 300 N M Of Torque 1 (54.18 KiB) Viewed 50 times

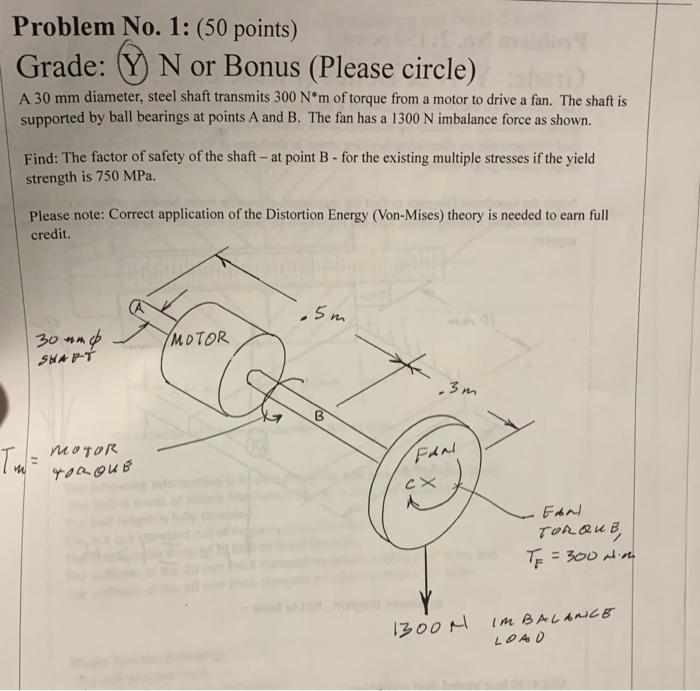

Problem No. 1: (50 points) Grade: Y Nor Bonus (Please circle) A 30 mm diameter, steel shaft transmits 300 N*m of torque from a motor to drive a fan. The shaft is supported by ball bearings at points A and B. The fan has a 1300 N imbalance force as shown. Find: The factor of safety of the shaft - at point B - for the existing multiple stresses if the yield strength is 750 MPa. Please note: Correct application of the Distortion Energy (Von-Mises) theory is needed to earn full credit. 5m YMOTOR 30 nmd SHAPT 3m B Tm= Motor TORQUE Fan Сх EAN TORQUE TE مهر، لمعرجة = 13oor Im BALANCE LOAD
