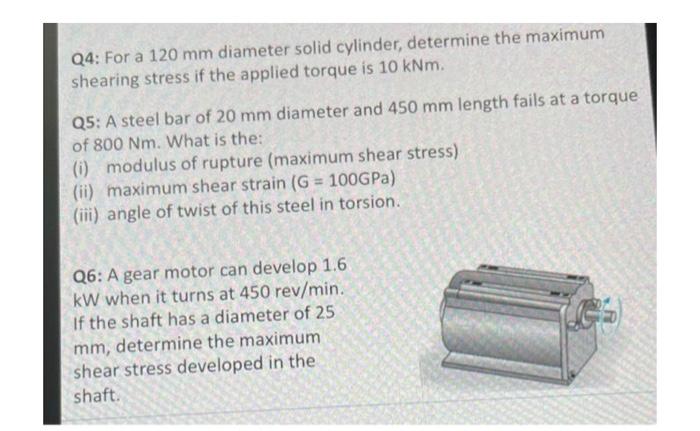

Q4: For a 120 mm diameter solid cylinder, determine the maximum shearing stress if the applied torque is 10 kNm. Q5: A steel bar of 20 mm diameter and 450 mm length fails at a torque of 800 Nm. What is the: (i) modulus of rupture (maximum shear stress) (ii) maximum shear strain (G = 100GPa) (iii) angle of twist of this steel in torsion. Q6: A gear motor can develop 1.6 kW when it turns at 450 rev/min. If the shaft has a diameter of 25 mm, determine the maximum shear stress developed in the shaft
Q4: For a 120 mm diameter solid cylinder, determine the maximum shearing stress if the applied torque is 10 kNm. Q5: A steel bar of 20 mm diameter and 450 mm length fails at a torque of 800 Nm. What is the: (i) modulus of rupture (maximum shear stress) (ii) maximum shear strain (G = 100GPa) (iii) angle of twist of this steel in torsion. Q6: A gear motor can develop 1.6 kW when it turns at 450 rev/min. If the shaft has a diameter of 25 mm, determine the maximum shear stress developed in the shaft
