3. Each of the two links (slender rods) has a mass of 2 kg/m. If the piston has a mass of 3 kg, determine the torque M t

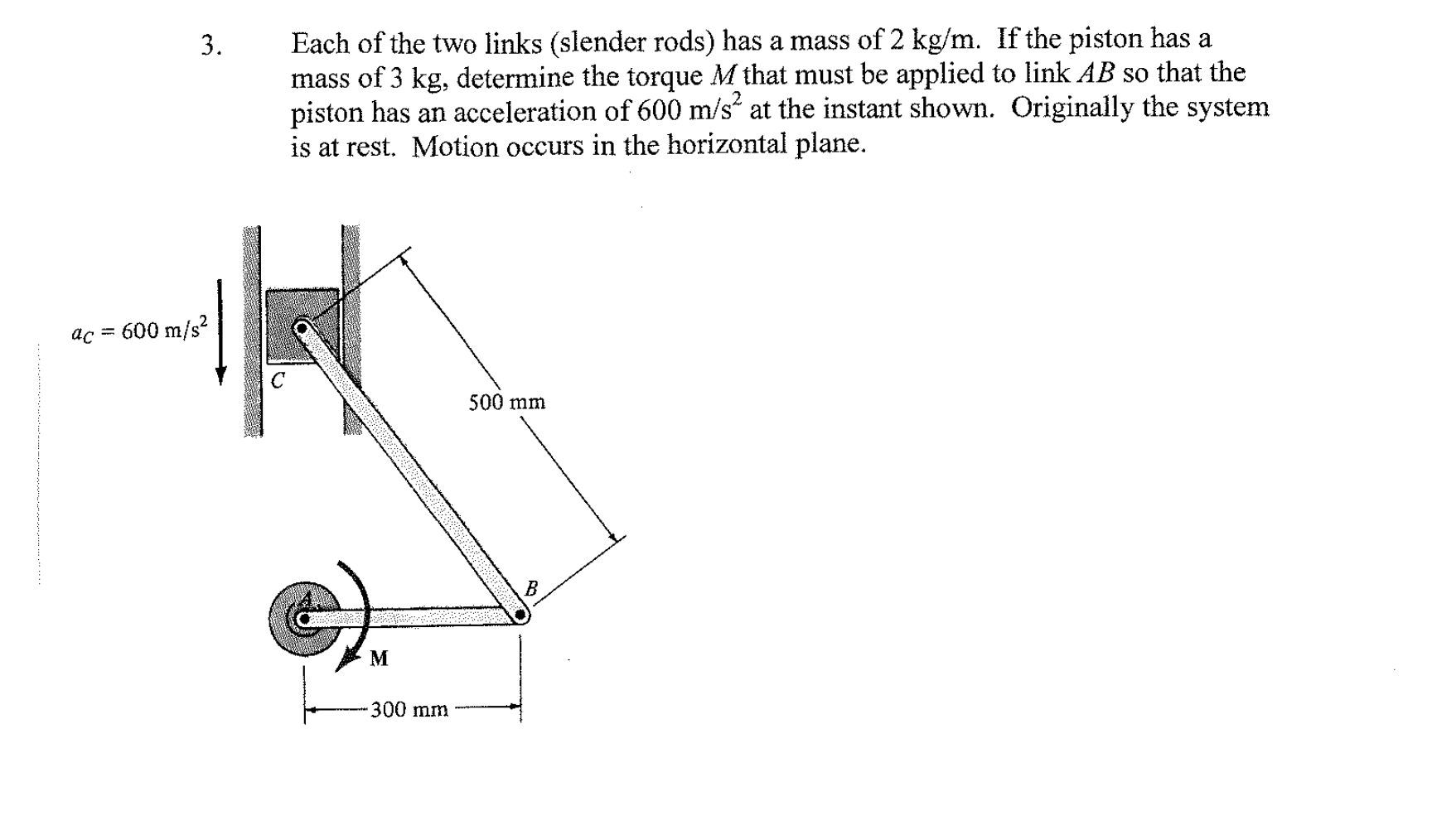

3. Each of the two links (slender rods) has a mass of 2 kg/m. If the piston has a mass of 3 kg, determine the torque M that must be applied to link AB so that the piston has an acceleration of 600 m/s at the instant shown. Originally the system is at rest. Motion occurs in the horizontal plane. ac = 600 m/s2 500 mm G) M M 300 mm
