Hlwater = 1.12 x 10-3 Pa.s Pwater = 1000 kg/m² Ywater = 9.8 kN/m3 P=200 kPa Lpipe = 300 m To corn field 0.5 m diameter c

[answerhappygod]

Hlwater 1 12 X 10 3 Pa S Pwater 1000 Kg M Ywater 9 8 Kn M3 P 200 Kpa Lpipe 300 M To Corn Field 0 5 M Diameter C 1 (48 KiB) Viewed 66 times

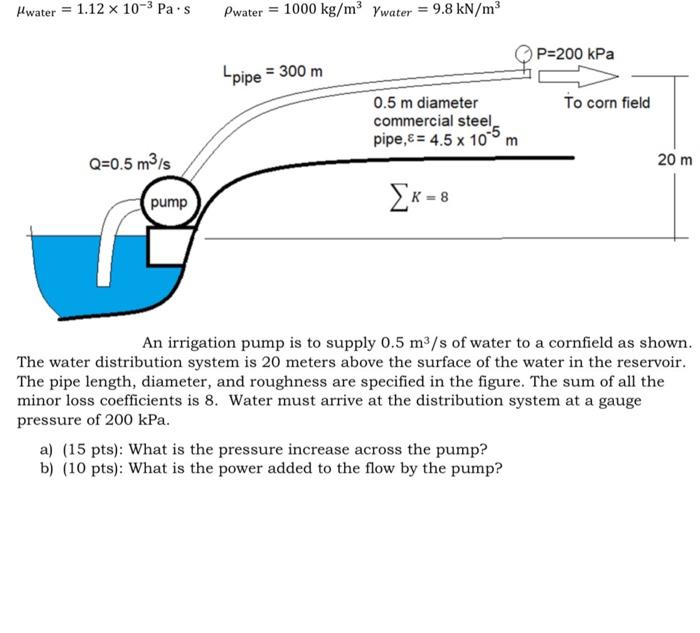

Hlwater = 1.12 x 10-3 Pa.s Pwater = 1000 kg/m² Ywater = 9.8 kN/m3 P=200 kPa Lpipe = 300 m To corn field 0.5 m diameter commercial steel pipe,& = 4.5 x 100 m Q=0.5 m3/s 20 m pump Σκ - 8 An irrigation pump is to supply 0.5 m3/s of water to a cornfield as shown. The water distribution system is 20 meters above the surface of the water in the reservoir. The pipe length, diameter, and roughness are specified in the figure. The sum of all the minor loss coefficients is 8. Water must arrive at the distribution system at a gauge pressure of 200 kPa. a) (15 pts): What is the pressure increase across the pump? b) (10 pts): What is the power added to the flow by the pump?
