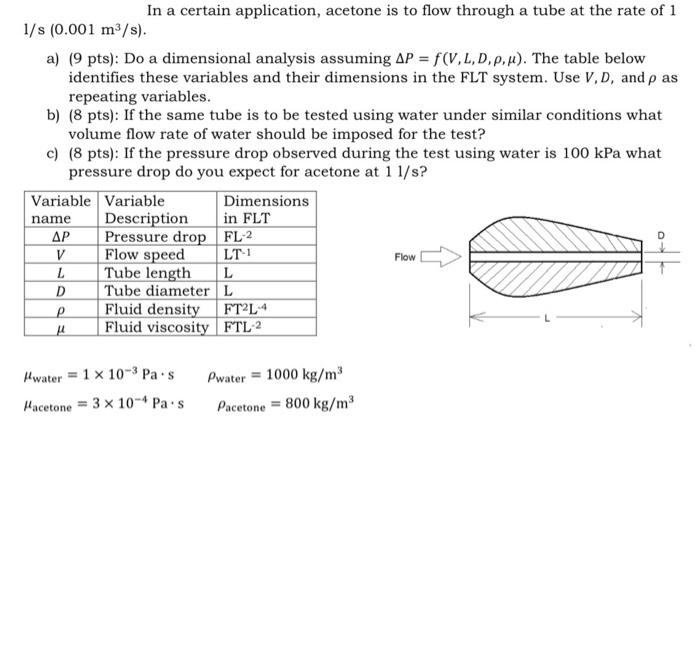

In a certain application, acetone is to flow through a tube at the rate of 1 1/ s (0.001 m/s). a) (9 pts): Do a dimensional analysis assuming AP = f(V.L,D,P.4). The table below identifies these variables and their dimensions in the FLT system. Use V, D, and p as repeating variables. b) (8 pts): If the same tube is to be tested using water under similar conditions what volume flow rate of water should be imposed for the test? c) (8 pts): If the pressure drop observed during the test using water is 100 kPa what pressure drop do you expect for acetone at 11/s? Variable Variable Dimensions name Description in FLT ΔΡ. Pressure drop FL 2 V Flow speed LT 1 L Tube length L D Tube diameter L р Fluid density FT2L4 Fluid viscosity FTL 2 Flow Hwater = 1 x 10-3 Pa.s Macetone = 3 x 10- Pa's Pwater = 1000 kg/m3 Pacetone = 800 kg/m
