5. Find the total resistance of the circuit below. (5 points) 4 Ω RI 10Ω R4 5 V + R2 RS 4Ω Ra 422 R3 8Ω 6. Find the curr

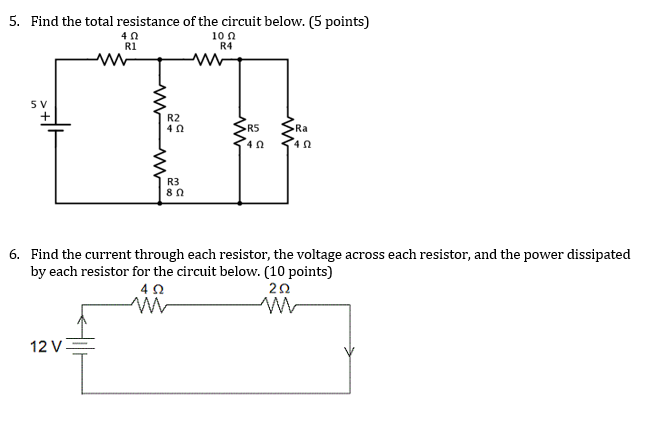

5. Find the total resistance of the circuit below. (5 points) 4 Ω RI 10Ω R4 5 V + R2 RS 4Ω Ra 422 R3 8Ω 6. Find the current through each resistor, the voltage across each resistor, and the power dissipated by each resistor for the circuit below. (10 points) 422 2Ω M 12 V
