Q3 Water flows over a flat surface at 5 ft/s, as shown in the figure. A pump draws off water through a narrow slit at a

Post by answerhappygod »

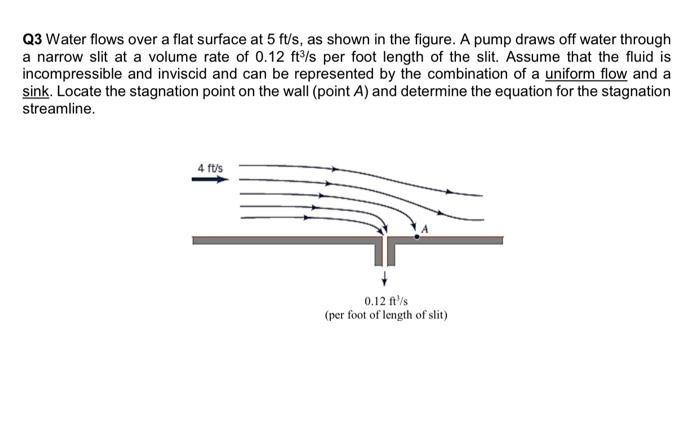

Q3 Water Flows Over A Flat Surface At 5 Ft S As Shown In The Figure A Pump Draws Off Water Through A Narrow Slit At A 1
Q3 Water Flows Over A Flat Surface At 5 Ft S As Shown In The Figure A Pump Draws Off Water Through A Narrow Slit At A 1 (30 KiB) Viewed 45 times
Q3 Water flows over a flat surface at 5 ft/s, as shown in the figure. A pump draws off water through a narrow slit at a volume rate of 0.12 ft/s per foot length of the slit. Assume that the fluid is incompressible and inviscid and can be represented by the combination of a uniform flow and a sink. Locate the stagnation point on the wall (point A) and determine the equation for the stagnation streamline. 4 ft/s 0.12 it's (per foot of length of slit)
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
