a Problem-2: Combined loading (25 points) A crank arm consists of a solid segment of length by and diameter d, a segment

Post by answerhappygod »

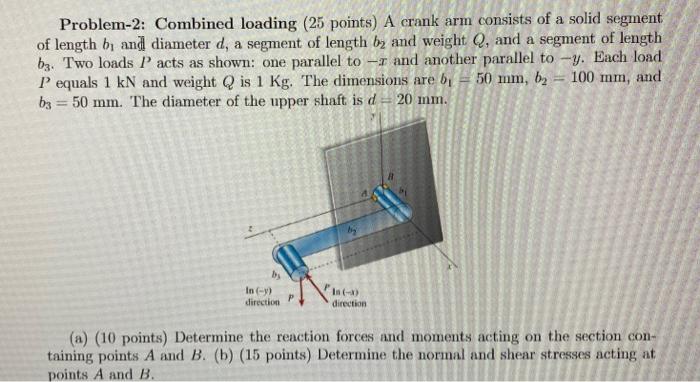

A Problem 2 Combined Loading 25 Points A Crank Arm Consists Of A Solid Segment Of Length By And Diameter D A Segment 1
A Problem 2 Combined Loading 25 Points A Crank Arm Consists Of A Solid Segment Of Length By And Diameter D A Segment 1 (50.32 KiB) Viewed 59 times
a Problem-2: Combined loading (25 points) A crank arm consists of a solid segment of length by and diameter d, a segment of length by and weight Q, and a segment of length bz. Two loads P acts as shown: one parallel to -1 and another parallel to-y. Each load Pequals 1 kN and weight Q is 1 Kg. The dimensions are bi = 50 mm, by 100 mm, and bz = 50 mm. The diameter of the upper shaft is d = 20 mm. bi In direction direction (a) (10 points) Determine the reaction forces and moments acting on the section con- taining points A and B. (b) (15 points) Determine the normal and shear stresses acting at points A and B.
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
