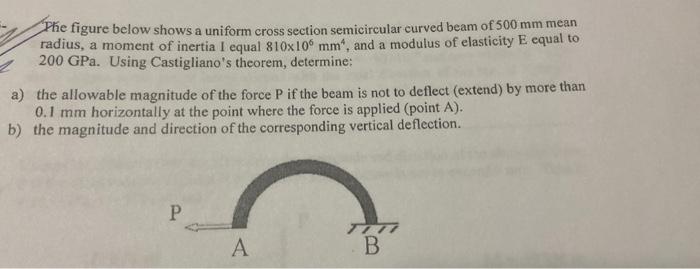

The figure below shows a uniform cross section semicircular curved beam of 500 mm mean radius, a moment of inertia I equal 810x10 mm", and a modulus of elasticity E equal to 200 GPa. Using Castigliano's theorem, determine: a) the allowable magnitude of the force P if the beam is not to deflect (extend) by more than 0.1 mm horizontally at the point where the force is applied (point A). b) the magnitude and direction of the corresponding vertical deflection P A 17 B
