Water (density of 1000 kg/m) flowing this rectangular duct below. The width of the duct is 0.5m into the paper. When the

Post by answerhappygod »

Water Density Of 1000 Kg M Flowing This Rectangular Duct Below The Width Of The Duct Is 0 5m Into The Paper When The 1
Water Density Of 1000 Kg M Flowing This Rectangular Duct Below The Width Of The Duct Is 0 5m Into The Paper When The 1 (23.86 KiB) Viewed 48 times

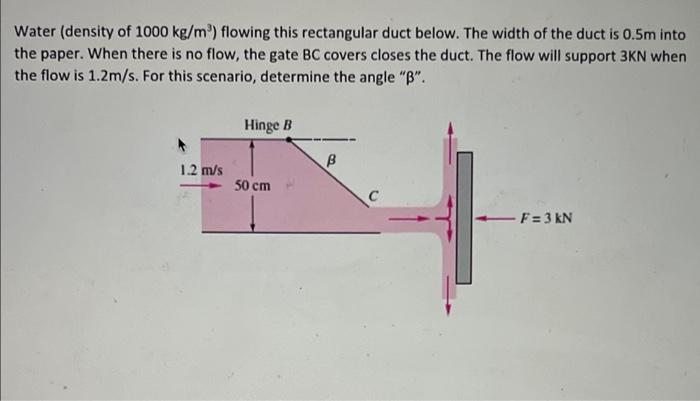

Water (density of 1000 kg/m) flowing this rectangular duct below. The width of the duct is 0.5m into the paper. When there is no flow, the gate BC covers closes the duct. The flow will support 3KN when the flow is 1.2m/s. For this scenario, determine the angle "B". Hinge B B 1.2 m/s 50 cm F = 3 kN
