If the frame rotates with a constant angular velocity and the horizontal gear B rotates with a constant angular velocity

Post by answerhappygod »

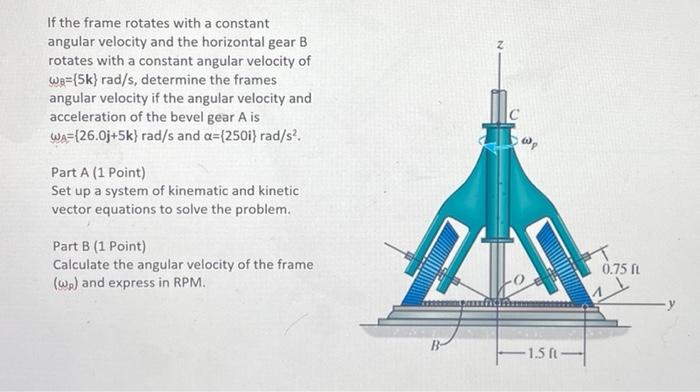

If The Frame Rotates With A Constant Angular Velocity And The Horizontal Gear B Rotates With A Constant Angular Velocity 1
If The Frame Rotates With A Constant Angular Velocity And The Horizontal Gear B Rotates With A Constant Angular Velocity 1 (37.63 KiB) Viewed 40 times
If the frame rotates with a constant angular velocity and the horizontal gear B rotates with a constant angular velocity of wa={5k} rad/s, determine the frames angular velocity if the angular velocity and acceleration of the bevel gear Ais WA={26.0j+5k} rad/s and a=(250i} rad/s2. Part A (1 Point) Set up a system of kinematic and kinetic vector equations to solve the problem Part B (1 Point) Calculate the angular velocity of the frame (Wp) and express in RPM. 0.75 -1.5 L
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
