Part A The state of stress at a point in a member is shown on the element. Determine the stress components acting on the

[answerhappygod]

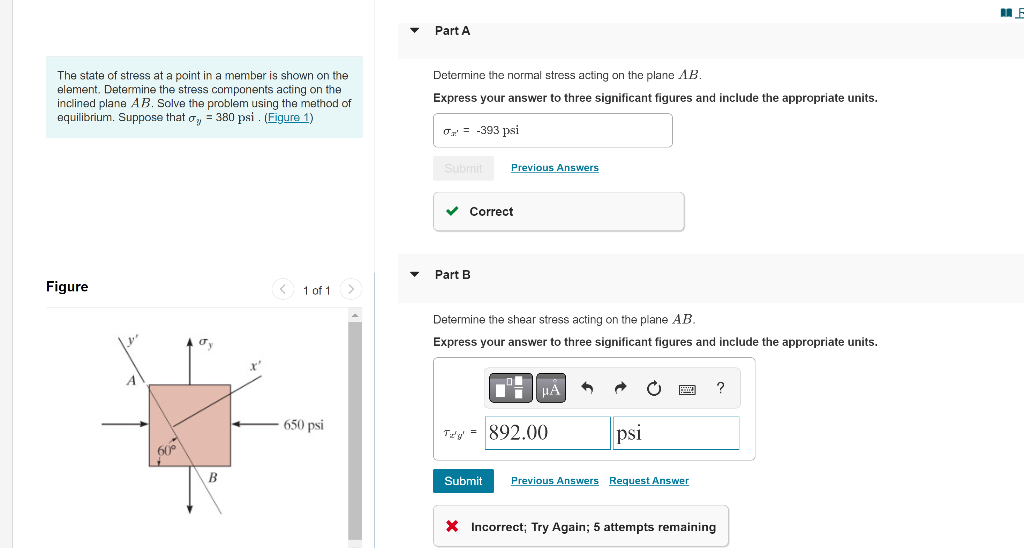

Part A The State Of Stress At A Point In A Member Is Shown On The Element Determine The Stress Components Acting On The 1 (70.64 KiB) Viewed 47 times

Part A The state of stress at a point in a member is shown on the element. Determine the stress components acting on the inclined plane AB. Solve the problem using the method of equilibrium. Suppose that oy = 380 psi. (Figure 1) Determine the normal stress acting on the plane AB. Express your answer to three significant figures and include the appropriate units. x = -393 psi Submit Previous Answers Correct Part B Figure 1 of 1 Determine the shear stress acting on the plane AB. Express your answer to three significant figures and include the appropriate units. A НА ? 650 psi Tzly = 892.00 psi 60° Submit Previous Answers Request Answer X Incorrect; Try Again; 5 attempts remaining
