In the arrangement shown, the lower disk has a diameter of 30 mm and a temperature of 500 K. The upper surface, which is

[answerhappygod]

In The Arrangement Shown The Lower Disk Has A Diameter Of 30 Mm And A Temperature Of 500 K The Upper Surface Which Is 1 (70.73 KiB) Viewed 53 times

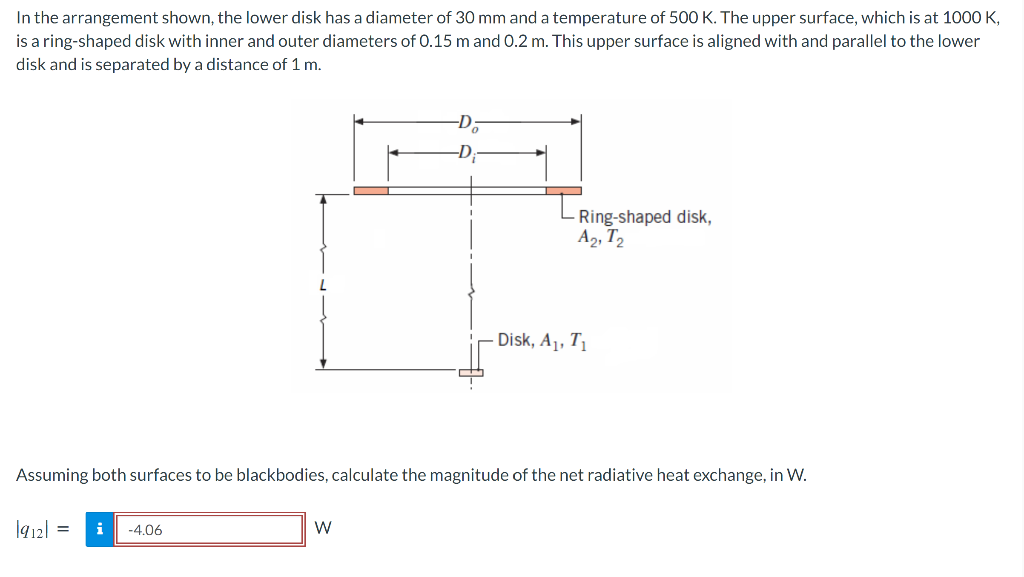

In the arrangement shown, the lower disk has a diameter of 30 mm and a temperature of 500 K. The upper surface, which is at 1000 K, is a ring-shaped disk with inner and outer diameters of 0.15 m and 0.2 m. This upper surface is aligned with and parallel to the lower disk and is separated by a distance of 1 m. -D -D Ring-shaped disk, A₂, T₂ Disk, A1, T1 Assuming both surfaces to be blackbodies, calculate the magnitude of the net radiative heat exchange, in W. 1912) = i -4.06 W
