Oil (density of 680 kg/m) flowing steadily at a rate of 0.16m/s is deflected downward by an angled elbow. For D=30cm, d=

[answerhappygod]

Oil Density Of 680 Kg M Flowing Steadily At A Rate Of 0 16m S Is Deflected Downward By An Angled Elbow For D 30cm D 1 (61.21 KiB) Viewed 42 times

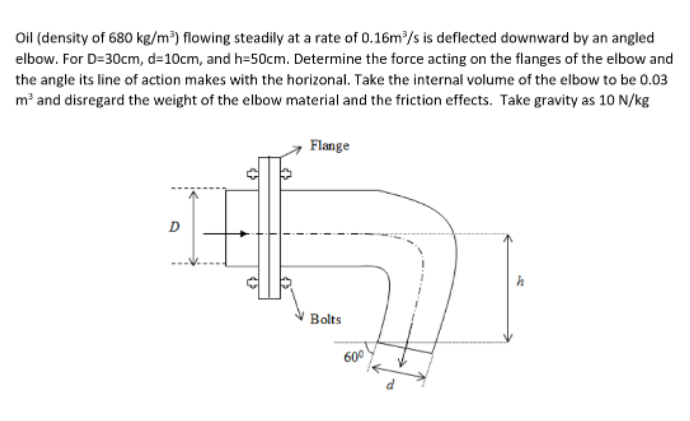

Oil (density of 680 kg/m) flowing steadily at a rate of 0.16m/s is deflected downward by an angled elbow. For D=30cm, d=10cm, and h=50cm. Determine the force acting on the flanges of the elbow and the angle its line of action makes with the horizonal. Take the internal volume of the elbow to be 0.03 m’and disregard the weight of the elbow material and the friction effects. Take gravity as 10 N/kg Flange D 12 h Bolts 600
