mo 2) The blow figure illustrates a 4-bar Linkage with traiangular coupler ABC. The input link is rotating Counter-Clock

Post by answerhappygod »

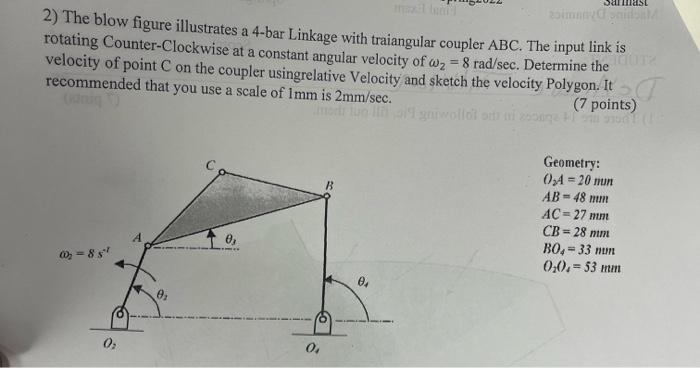

Mo 2 The Blow Figure Illustrates A 4 Bar Linkage With Traiangular Coupler Abc The Input Link Is Rotating Counter Clock 1
Mo 2 The Blow Figure Illustrates A 4 Bar Linkage With Traiangular Coupler Abc The Input Link Is Rotating Counter Clock 1 (29.33 KiB) Viewed 47 times
mo 2) The blow figure illustrates a 4-bar Linkage with traiangular coupler ABC. The input link is rotating Counter-Clockwise at a constant angular velocity of wz = 8 rad/sec. Determine the velocity of point on the coupler usingrelative Velocity and sketch the velocity Polygon. It recommended that you use a scale of imm is 2mm/sec. (7 points) ni wololo Geometry: 0,4 = 20 mun AB= 48 mm AC = 27 mm CB = 28 mm BO. = 33 un 0,0.= 53 mm e, =85 0, 0
Join a community of subject matter experts. Register for FREE to view solutions, replies, and use search function. Request answer by replying!
