help ASAP PLEASE
help ASAP PLEASE

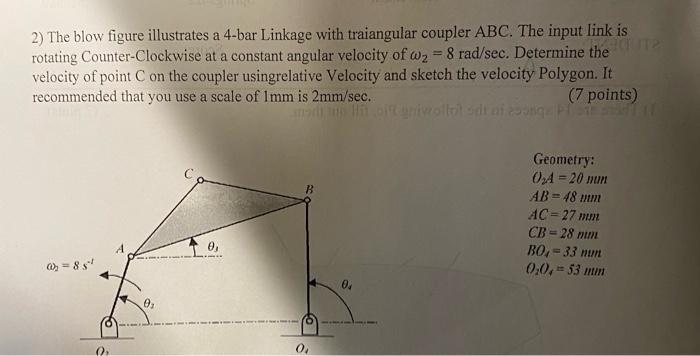

2) The blow figure illustrates a 4-bar Linkage with traiangular coupler ABC. The input link is rotating Counter-Clockwise at a constant angular velocity of W2 = 8 rad/sec. Determine the velocity of point on the coupler usingrelative Velocity and sketch the velocity Polygon. It recommended that you use a scale of Imm is 2mm/sec. (7 points) B Geometry: 0,4 = 20 un AB = 48 mm AC = 27 mm CB-28 nm B0,-33 un 0,0,- 53 mm =85 04 e 5 0
2) The blow figure illustrates a 4-bar Linkage with traiangular coupler ABC. The input link is rotating Counter-Clockwise at a constant angular velocity of W2 = 8 rad/sec. Determine the velocity of point on the coupler usingrelative Velocity and sketch the velocity Polygon. It recommended that you use a scale of Imm is 2mm/sec. (7 points) B Geometry: 0,4 = 20 un AB = 48 mm AC = 27 mm CB-28 nm B0,-33 un 0,0,- 53 mm =85 04 e 5 0
