Represent the resultant of the force system acting on the pipe assembly by a single force Rat A and a couple M. 115 N 37

Post by answerhappygod »

Represent The Resultant Of The Force System Acting On The Pipe Assembly By A Single Force Rat A And A Couple M 115 N 37 1
Represent The Resultant Of The Force System Acting On The Pipe Assembly By A Single Force Rat A And A Couple M 115 N 37 1 (137.83 KiB) Viewed 48 times

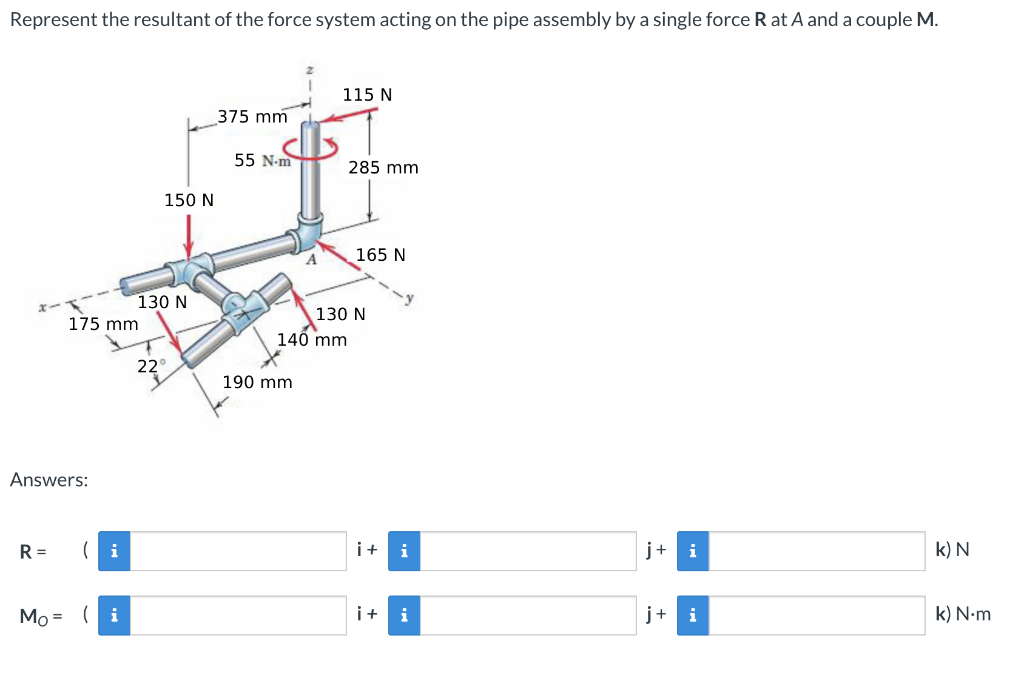

Represent the resultant of the force system acting on the pipe assembly by a single force Rat A and a couple M. 115 N 375 mm 55 N.m 285 mm 150 N 165 N 130 N 175 mm 130 N 140 mm 22 190 mm Answers: R= (i i + i j+ i k) N Mo = ( i i + i j + i k) N.m
