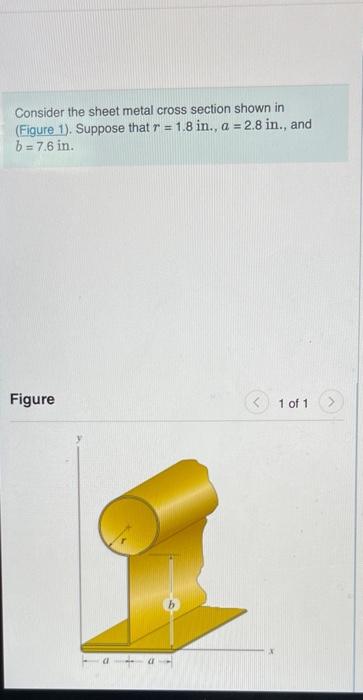

Consider the sheet metal cross section shown in (Figure 1). Suppose that r = 1.8 in., a = 2.8 in., and b = 7.6 in. Figure 1 of 1

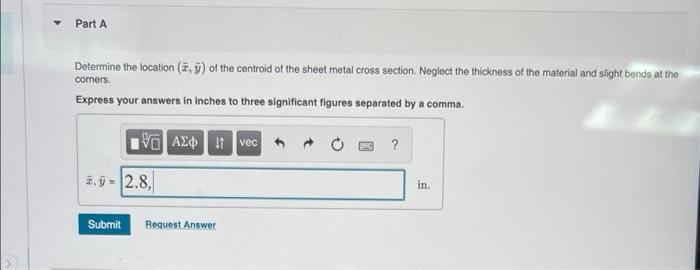

Part A Determine the location (8,5) of the centroid of the sheet metal cross section. Noglect the thickness of the material and slight bends at the comers. Express your answers in Inches to three significant figures separated by a comma. VI ΑΣΦI it vec ? 7.9 -2.8, in. Submit Request Answer
