Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.7 kN and 8.8 kN. - re

[answerhappygod]

Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 7 Kn And 8 8 Kn Re 1 (26.8 KiB) Viewed 39 times

Consider The Beam Shown In Figure 1 The Roller At A And The Pin At B Can Support A Load Up To 3 7 Kn And 8 8 Kn Re 2 (17.67 KiB) Viewed 39 times

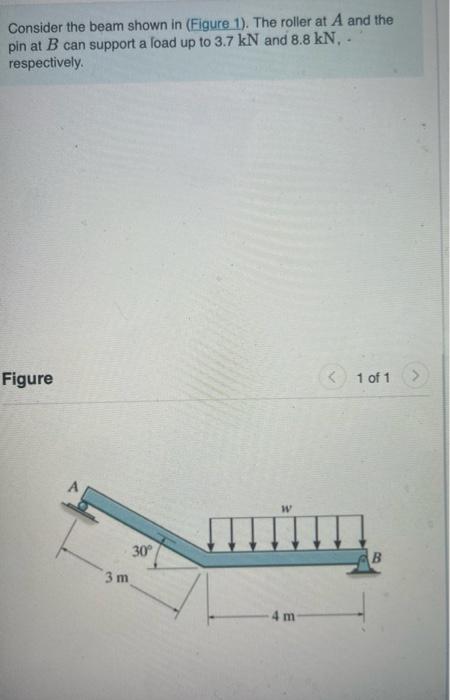

Consider the beam shown in (Figure 1). The roller at A and the pin at B can support a load up to 3.7 kN and 8.8 kN. - respectively. Figure < 1 of 1 w 30 wim B 3 m 4 m

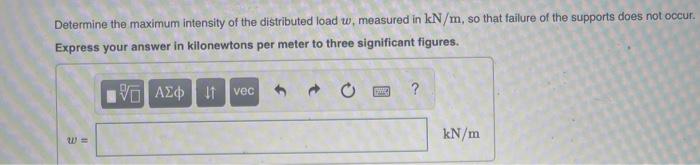

Determine the maximum intensity of the distributed load w, measured in kN/m, so that failure of the supports does not occur. Express your answer in kilonewtons per meter to three significant figures. ΨΗ ΑΣΦ 11 vec ? kN/m
