35 KN 55 kN/m 35 kN/m Draw shear and moment diagrams for the beam shown in the figure. Next, select the lightest wide-he

Post by answerhappygod »

35 Kn 55 Kn M 35 Kn M Draw Shear And Moment Diagrams For The Beam Shown In The Figure Next Select The Lightest Wide He 1
35 Kn 55 Kn M 35 Kn M Draw Shear And Moment Diagrams For The Beam Shown In The Figure Next Select The Lightest Wide He 1 (22.37 KiB) Viewed 35 times

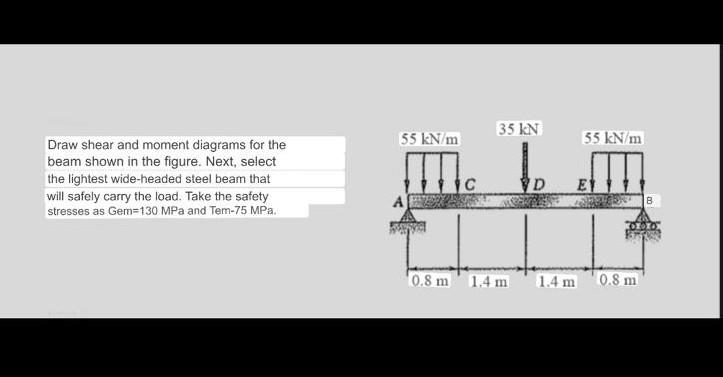

35 KN 55 kN/m 35 kN/m Draw shear and moment diagrams for the beam shown in the figure. Next, select the lightest wide-headed steel beam that will safely carry the load. Take the safety stresses as Gem=130 MPa and Tem-75 MPa D ET B TOLID 0.8 m 1.4 m 1.4 m 0.8 m
